Technical specifications

ALU II is a high-performance midtower designed to offer an optimized space for an easy PC building. Apart from a brushed aluminum-like front panel, the ALU II has all the needed features to offer a great accessibility when building your computer: USB 3.0 port, USB 2.0 port, audio and mic connectors, internal wiring management system… It is also equipped with an ultra-silent 120mm fan and an external drive bay for 5.25” optical disks to easily access to your CD/DVD.

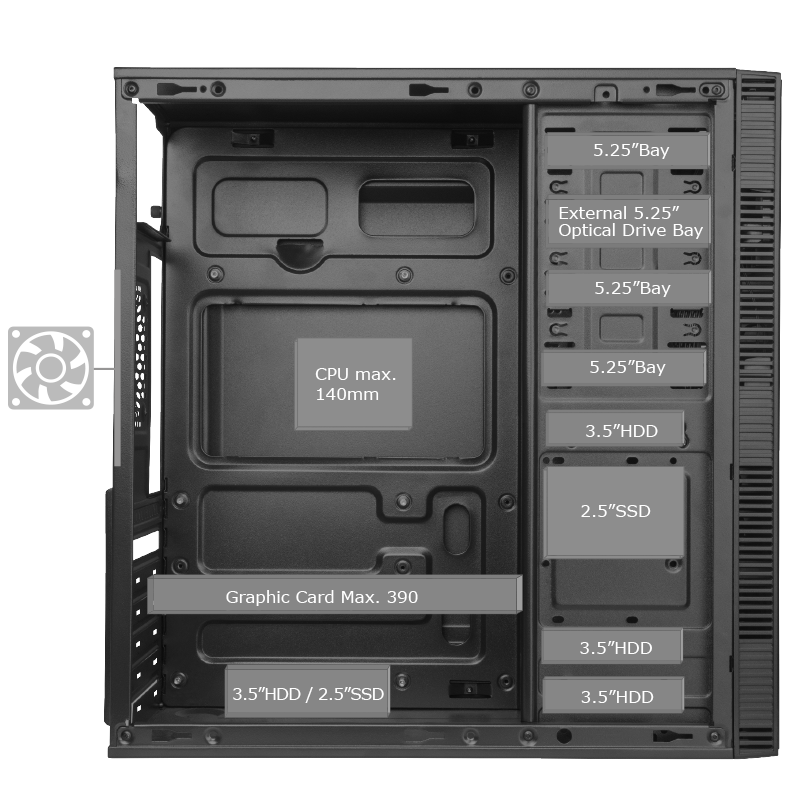

  • Motherboards: ATX
  • High quality materials with brushed aluminum-like front panel
  • Cooling fans: Ultrasilent 120mm fan included / space for 1 rear 80mm fan and 1 side 120mm or 140mm fan
  • Internal drive bay: 3×3.5” HDD + 2×2.5” SSD + 3×5.25”
  • External drive bay: optical disk unit 1×5.25”
  • Expansion slots: 7m
  • VGA Máx: 390mm
  • CPU: Up to 140mm height
  • I/O Ports: USB 3.0×1 + USB 2.0×2 + Audio & Mic
  • Extras: Internal wiring management system



Audio front panel installation guide

If you are having issues to set up the front audio of your case, we recommend you to download and install the audio drivers and follow the steps shown in the installation video.

Watch the audio front panel installation guide
